Product Information

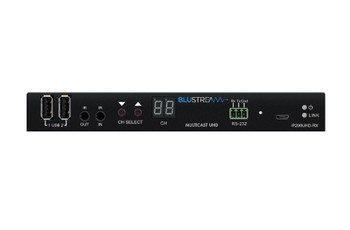

Receive UHD video across your network and into a TV in another room, with the Blustream IP200UHD-RX.
Part of Blustream’s UHD Multicast distribution platform
Blustream’s UHD Multicast distribution system uses multiple modules to distribute UHD video, virtually latency-free, over a 1 GB network.
Receive HDMI at HDCP2.2, 4K UHD standard
Using a 1 GB network, you can stream a 4K UHD signal, up to 100 metres and straight to a multi-room TV – virtually latency free. The IP200UHD-RX receiver connects to the receiving TV using HDMI.
Supports wide range of formats
The system supports a wide range of formats, including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission. Video up to 4K 30Hz UHD is supported.
Loop through Ethernet
Ethernet loop out lets you continue the network to a virtually unlimited size – perfect for the most complex multi-room systems.
Dedicated audio output
Other great features include RCA phono outputs for dedicated audio output.
Key Features
Advanced UHD video over 1GB Network
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
Video up-scaling and down-scaling
Supports up to 4K 30Hz UHD video output
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio breakout
LAN loop-out for one-to-many extender mode
Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
Features 4 operational modes:
Matrix distribution (requires 1GB network switch)
Video wall (requires 1GB network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)
Specifications
Video Input Connectors: 1 x LAN RJ45 connector
Video Output Connectors: 1 x HDMI Type A, female
Audio Output Connectors: 2 x RCA L/R Analogue audio
Ethernet port: 1 x LAN RJ45 connector (video extension)
RS-232 Serial port: 1 x 3-Pin Phoenix connector
USB/KVM Port: 2 x USB - Type A
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Firmware Update (MCU): 1x Micro-USB
Mounting kit included
Dimensions (W x D x H ): 190mm x 114mm x 25mm
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Enjoy 4K UHD video, around your home, with the Blustream IP200UHD-RX.
